E Z-LOCK涂胶螺套

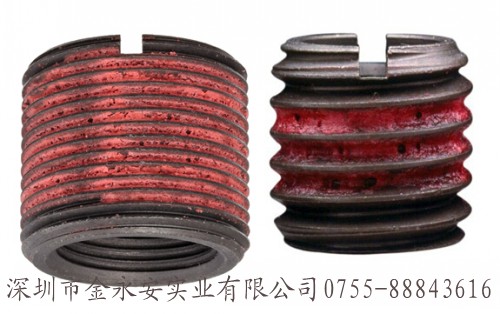

涂胶螺套具有内部和外部的螺纹,可以使用在螺纹嵌件的顶部发出的螺丝驱动器钥匙槽被固定成一个PE螺纹孔的金属衬套。E Z-LOCK涂胶螺套的外螺纹上都有乐泰耐落粘合剂,在E Z-LOCK涂胶螺套安装螺于螺丝孔以后,该粘合会迅速与螺丝孔粘合。
EZ LOK涂胶螺套都有标准尺寸/螺距的螺纹,例如,如果安装一个外螺纹为1/2-13的EZ LOK涂胶螺套,用户只需钻一个标准六十四分之二十七钻的孔,然后用标准1/2-13丝锥攻牙。最后使用工具将E Z-LOCK涂胶螺套进入螺丝孔内。
EZ-LOK Thread inserts are threaded metal bush having internal and external threading which can be fastened into a pe-threaded hole using a screw driver key slot given at the top of the thread insert. These inserts are coated with dry encapsulated Loctite adhesive which when introduced to the internal threads release the adhesive for bonding the thread assembly. E-Z LOK threaded inserts have standard size/pitch threads so they can be installed using standard tools you probably already have in your toolbox. For example, if an E-Z LOK with a 1/2-13 external thread is being installed, the user simply drills the hole with a standard 27/64 drill and then taps the hole with a standard 1/2-13 tap. Once that’s done, the insert is threaded into the hole like an ordinary fastener using a screwdriver, bolt and jam nut, or an E-Z LOK drive tool.
